왼쪽

오른쪽

위로

아래로

잡이닫음

잡이염

회전

핸드선정

팔선택

끝

REMARK WAIT FOR OBJECT

10 WAIT 2

REMARK OBJECT PRESENT, REMOVE IT

MOVE POS1

MOVE POS2

CLOSEI  REMARK CLOSE THE GRIP

MOVE BOX1

OPENI  REMARK DROP THE OBJECT

GOTO 10

/* input a program */

edit()

{

char s[100];

printf("＼n");

*prog='＼0';          /* initialize the program array */

do {

printf(" :  ");

gets(s);

if (*s) {

strcat(s, "＼n");      /* use newline as separator */

strcat(prog, s);

}

} while(*s);

}

/* teach the robot certain moves */

teach()

{

int x, y;

int i;

char name[30], num[10];

strcpy(name, "point");

position();

gotoxy(0, 0);

x=cur_x;  y=cur_y;

for (; ;) {

switch(tolower(getch())) {

case '8' :

if (move(x, y-1))  y--;

break;

case '2' :

if (move(x, y+1))  y++;

break;

case '4' :

if (move(x-1, y))  x--;

break;

case '6' :

if (move(x+1, y)  x++;

break;

case '0' :

if (i=get_point()) {

itoa(i, num, 10);

strcpy(point[i].name, name);   /* increment point name */

strcat(point[i].name, num);

gotoxy(0, 24);

printf("%s stored", point[i].name);

printf("                                     ");

point[i].x=x;

point[i].y=y;

}

break;

case '1' :

cur_x=cur_y=0;       /* reset globals */

return;

}

}

}



/* return index of an open slot in the point database */

get_point()

{

register int t;

for (t=1; t<MAX ; t++)

if (!*(point[t].name))  return t;

return 0;

}

/* execute a robot program */

run()

{

get_token();

while(*token) {

if (!strcmp(token, "moveto"))  moveto_setup();

if (!strcmp(token, "findt"))  findt();

if (!strcmp(token, "finds"))  finds();

if (!strcmp(token, "move"))  do_move();

if (!strcmp(token, "ifsense"))  ifsense();

if (!strcmp(token, "goto"))  do_goto();

if (!strcmp(token, "movep"))  do_movep();

get_token();

}

}

/* Robot Simulator */

#include "stdio.h"

#include "dos.h"

#define MAX 200

#define SQUARE 0

#define TRIANGLE 1



/* database for delta-D recognizer */

struct oldpoints {

int x, y;

} oldp[MAX];

int pos=0;     /* indexes into oldp database */



/* database for holding the spatial coordinates of user taught locations (points) in 2-d space */

struct loc_point {

int x, y;

char name[30];

} point[MAX];

#define PROGSIZE 1000

char prog[PROGSIZE];    /* holds the robot program */

char *p_pos=0;          /* points into the sentence */

char token[80];         /* contains the world */

char cur_x, cur_y;      /* current x, y pos of robot */

main()

{

char ch;

register int t;

for (t=0; t<MAX; t++)  *(point[t].name)='＼0';

for (; ;) {

gotoxy(0, 24);

printf("choose : (E)dit, (R)un, (T)each, (Q)uit : ");

setup();         /* restart each time */

switch(tolower(getch()) {

case 'e' : edit();

break;

case 'r' : position();

run();

break;

case 't' : teach();

cls();

break;

case 'q' : exit();

}

}

}

setup()

{

pos=0;

p_pos=prog;

cur_x=cur_y=0;

}



/* input a program */

edit()

{

char s[100];

printf("＼n");

*prog='＼0';          /* initialize the program array */

do {

printf(" :  ");

gets(s);

if (*s) {

strcat(s, "＼n");      /* use newline as separator */

strcat(prog, s);

}

} while(*s);

}



/* teach the robot certain moves */

teach()

{

int x, y;

int i;

char name[30], num[10];

strcpy(name, "point");

position();

gotoxy(0, 0);

x=cur_x;  y=cur_y;

for (; ;) {

switch(tolower(getch())) {

case '8' :

if (move(x, y-1))  y--;

break;

case '2' :

if (move(x, y+1))  y++;

break;

case '4' :

if (move(x-1, y))  x--;

break;

case '6' :

if (move(x+1, y)  x++;

break;

case '0' :

if (i=get_point()) {

itoa(i, num, 10);

strcpy(point[i].name, name);   /* increment point name */

strcat(point[i].name, num);

gotoxy(0, 24);

printf("%s stored", point[i].name);

printf("                                     ");

point[i].x=x;

point[i].y=y;

}

break;

case '1' :

cur_x=cur_y=0;       /* reset globals */

return;

}

}

}



/* return index of an open slot in the point database */

get_point()

{

register int t;

for (t=1; t<MAX ; t++)

if (!*(point[t].name))  return t;

return 0;

}



/* execute a robot program */

run()

{

get_token();

while(*token) {

if (!strcmp(token, "moveto"))  moveto_setup();

if (!strcmp(token, "findt"))  findt();

if (!strcmp(token, "finds"))  finds();

if (!strcmp(token, "move"))  do_move();

if (!strcmp(token, "ifsense"))  ifsense();

if (!strcmp(token, "goto"))  do_goto();

if (!strcmp(token, "movep"))  do_movep();

get_token();

}

}

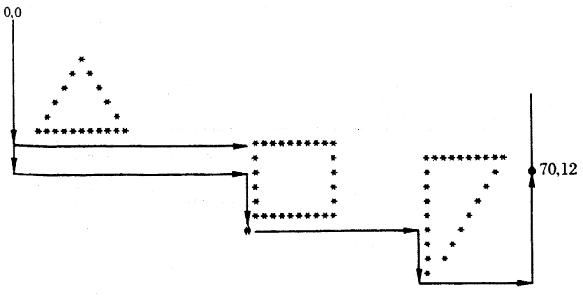

moveto_setup()

{

int x, y;

get_token();

x=atoi(token);

get_token();

y=atoi(token();

if (outrange(x, y)) {

serror("moveto arguments out of range ＼n");

}

else moveto(x, y);

}



/* move to a point */

moveto(x, y)

int x, y;

{

char incx, incy;

x=x-cur_x;

y=y-cur_y;

do {

while(y) {

if (y<0)  incy=-1; else incy=1;

if (move(cur_x, cur_y+incy))

y-=incy;

else x+=find_path_right(cur_x, cur_y);

}

while(x) {

if (x<0)  incx=-1; else incx=1;

if (move(cur_x+incx, cur_y))

x-=incx;

else y+=find_path_down(cur_x, cur_y);

}

 } while (x||y);

}



/* moves the robot to specified point if possible. Returns 0 on invalid location, 1 otherwise */

move(x, y)

int x, y;

{

if (outrange(cur_x, cur_y))  return;

if (check_point(x, y))  return 0;

gotoxy(cur_x, cur_y);

/* if you wish to see the robot's trial, then remove the comments around the next line */

/* putchar('.') ; */

gotoxy(x, y);

putchar('#');

cur_x=x;  cur_y=y;

return 1;

}



find_path_down(x, y)

int x, y;

{

if (check_point(x, y+1)) {

move(cur_x, cur_y-1);

return 1;

} else {

move(cur_x, cur_y+1);

return -1;

}

}



find_path_right(x, y)

int x, y;

{

if (check_point(x+1, y)) {

move(cur_x-1, cur_y);

return 1;

} else {

move(cur_x+1, cur_y);

return -1;

}

}

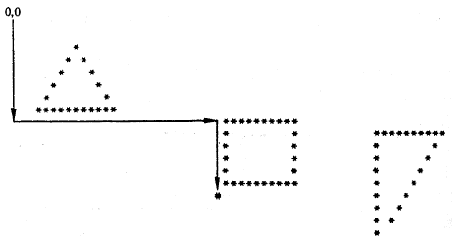

/* find a triangle */

findt()

{

int x, y;

if (recognize(&x, &y, TRIANGLE)) move(x-1, y);

}



/* find a square */

finds()

{

int x, y;

if (recognize(&x, &y, SQUARE)) move(x-1, y);

}



/* move one increment in specified direction */

do_move()

{

get_token();

if (!strcmp(token, "up")) move(cur_x, cur_y+1);

else if (!strcmp(token, "down")) move(cur_x, cur_y+1);

else if (!strcmp(token, "left")) move(cur_x-1, cur_y);

else if (!strcmp(token, "right")) move(cur_x+1, cur_y);

}



/* if position indicated is clear then do target statement */

ifsense()

{

char xinc, yinc;

xinc=yinc=0;

get_token();

if (!strcmp(token, "up")) yinc=-1;

else if (!strcmp(token, "down")) yinc=1;

else if (!strcmp(token, "left")) xinc=-1;

else if (!strcmp(token, "right")) xinc=1;

if (!check_point(cur_x+xinc, cur_y+yinc)) {

/* failure, so find next statement */

while (*p_pos!='＼n' && *p_pos!='＼0')  p_pos++;

return;

}

get_token();

/* check for "then" */

if (strcmp(token, "then")) {

serror("-then-expected ＼n")

}

/* return with p_pos pointing to the target statement */

}



/* perform the goto */

do_goto()

{

char *p, label[80];

get_token();

strcpy(label, token);

/* to find the label, you must search through the program, so the current state of the system must be saved */

p=p_pos;

p_pos=prog;     /* start at top and look for label */

get_token();

while(*token) {

if (!strcmp(token, label))  return;     /* find */

get_token();

}

p_pos=p;    /* not found so clean up */

}



/* goto a user taught point */

do_movep()

{

register int t;

get_token();

for (t=0; t<MAX; t++) {

if (!strcmp(point[t].name, token)) {

moveto(point[t].x, point[t].y);

return;

}

}

serror("point not found");

}



/* return true if out-of-range coordinates */

outrange(x, y)

int x, y;

{

if (x<0 || x>79) return 1;

if (y<0 || y>24) return 1;

return 0;

}



/* return a token from the input stream */

get_token()

{

char *p;

p=token;

/* skip spaces */

while(*p_pos==' ')  p_pos++l;

if(*p_pos=='＼n') {

*p++='＼n';

*p='＼0';

p_pos++;

return;

}

if(*p_pos=='＼0') {    /* is end of program */

*p++='＼0';

return;

}

/* read word until a space or newline */

while (*p_pos!=' ' && *p_pos!='＼n') {

*p=*p_pos++;

p++;

}

*p='＼0';

}



/* read the positions for the objects */

position()

{

cls();

make_triangle(10, 4);

make_square(30, 10);

make_right_triangle(50, 11);

}



/* draw an isosceles triangle at x, y */

make_triangle(x, y)

int x, y;

{

int t;

for (t=0; t<5 ; t++) {

gotoxy(x-t, y+t);

printf("*");

}

for(t=0; t<5; t++) {

gotoxy(x+t, y+t);

printf("*");

}

gotoxy(x-5, y+5);

printf("*****************");

}



/* draw a right triangle at x, y */

make_right_triangle(x, y)

int x, y;

{

int t;

for (t=0; t<10 ; t++) {

gotoxy(x, y+t);

printf("*");

}

for(t=0; t<9; t++) {

gotoxy(x-t+9, y+t);

printf("*");

}

gotoxy(x, y);

printf("*****************");

}



/* draw a square at x, y */

make_square(x, y)

int x, y;

{

int t;

for (t=0; t<5; t++) {

gotoxy(x, y+t);

printf("*");

}

for (t=0; t<5; t++) {

gotoxy(x+10, y+t);

printf("*");

}

gotoxy(x, y);

printf("****************")

gotoxy(x, y+5);

printf("****************");

}



/* The delta_D recognizer */



/* search for a triangle and a square */

recognize(x1, y1, obj)

int *x1, *y1;

char obj;

{

int x, y, t;

t=0;

x=cur_x;

y=cur_y;

if (obj=TRIANGLE)

while (find_point(x, y, &x, &y)) {

if (istriangle(x, y)) {

gotoxy(t*40, 0);   t++;

*x1=x; *y1=y;

return 1;

}

x++;

}

else {

clear_db();

while (find_point(x, y, &x, &y)) {

if (issquare(x, y)) {

gotoxy(0, 1);

*x1=x; *y1=y;

return 1;

}

x++;

}

}

return 0;

}



/* check for an issoceles triangle by key points */

istriangle(x, y)

int x, y;

{

if (follow(x, y)==2)  return 1;

return 0;

}



/* check for a right triangle by key points */

isright(x, y)

int x, y;

{

if (check_point(x+10, y) && check_point(x, y+9))

return 1;

return 0;

}



/* check for a square by key points */

issquare(x, y)

int x, y;

{

if (follow(x, y)==3)  return 1;

return 0;

}



/* follow a shape and return number of turns */

follow(x, y)

int x, y;

{

int incx, incy, startx, starty, count;

startx=x; starty=y;

count=0;

assert_oldp(x, y);

if (!find_direction(x, y, &incx, &incy))  return 0;

do {

while (check_point(x+incx, y+incy)) {

x=incx+x;

y=incy+y;

assert_oldp(x, y);

}

if (x==startx && y=starty)  return count;

count++;

if (!find_direction(x, y, &incx, &incy))  return 0;

} while(1);

}



/* find a new line to follow */

find_direction(x, y, incx, incy)

int x, y, *incx, *incy;

{

register int a, b;

for (a=-1; a<2; a++)

for (b=-1; b<2; b++)

if (check_point(x+a, y+b) && !find(x+a, y+b))  {

*incx=a;

*incy=b;

return 1;

}

return 0;

}



assert_oldp(x, y)

int x, y;

{

if (pos==MAX) {

printf("point database full ＼n");

return;

}

if (find(x, y))  return;      /* already in db */

oldp[pos].x=x;

oldp[pos].y=y;

pos++;

}



find(x, y)

int x, y;

{

register int t;

for (t=0; t<pos; t++) {

if (oldp[t].x==x && oldp[t].y==y)  return 1;

}

return 0;

}



/* returns the cursor loc of an '*' with the search beginning with startx and starty */

find_point(startx, starty, x, y)

int startx, starty, *x, *y;

{

int a, b;

a=startx; b=starty;

do {

do {

if (check_point(a, b) {

*x=a;

*y=b;

returns 1;

}

a++;

} while (a<79);

a=0;

b++;

} while (b<24);

return 0;

}



/* checks to see if the point is an '*' */

check_point(a, b)

int a, b;

{

union REGS regs;

gotoxy(a, b);

regs.h.ah=8;

regs.h.bh=0;

int86(16, &regs, &regs);

if (regs.h.al=='*') return 1;

return 0;

}



/* put cursor at x, y */

gotoxy(x, y)

int x, y;

{

union REGS regs;

regs.h.ah=2;

regs.h.dh=y;

regs.h.dl=x;

regs.h.bh=0;

int86(16, &regs, &regs);

}



/* clear the screen */

cls()

{

union REGS resg;

regs.h.ah=6;

regs.h.al=0;

regs.h.ch=0;

regs.h.cl=0;

regs.h.dh=24;

regs.h.dl=79;

regs.h.bh=7;

int68(16, &regs, &regs);

}



clear_db()

{

register int t;

for (t=0; t<MAX; t++)  oldp[t].x=oldp[t].y=0;

}



/* report syntax errors */

serror(s)

char *s;

{

gotoxy(0, 24);

printf("                                 ");

gotoxy(0, 24);

printf(s);

}

choose : (E)dit, (R)un, (T)each, (Q)uit :

moveto 70 12

moveto 0 0

finds

finds

10 move down

ifsense right then goto 10

struct variable {

char name[10];

int value;

} var[MAX];
